How to fix a cracked vinyl car door panel?

Q: Why does a leather or vinyl repair look too light, dark or flat?

Likely cause: The mix was judged while wet, the undertone differs, the compound layer is too thick, the lighting changed, or the surrounding grain was not recreated. What to do: Compare a thin, fully dry test beside undamaged leather or vinyl in normal-use light. Adjust one color at a time, mix thoroughly and dry-test again. Apply only thin layers and let each dry fully; recreate the surrounding texture while the final layer is semi-dry, then blend the fully dried edge as shown in the matching Coconix method.

Q: Why is the edge or texture of a leather or vinyl repair still visible?

Likely cause: Compound was applied too thickly, the opening or groove was not leveled in thin layers, the blend ended abruptly, or texture was not recreated while the final layer was semi-dry. What to do: Use the damage-specific Coconix method on the smallest affected area. Build a low spot with thin layers, letting each layer dry fully. Avoid adding more material to a ridge; compare the cured edge with the official blending step before reworking it. For a smooth patch, recreate the surrounding texture while the final corrective layer is semi-dry, then blend only the fully dried boundary.

Q: What should I do if leather or vinyl damage reopens or peeling continues?

Likely cause: The opening lacked support, the compound was built too thickly or used before fully dry, repeated flexing or abrasion is stressing the spot, or the surrounding coating is failing beyond a localized repair. What to do: Clean and dry the complete area, inspect it while the item moves normally and choose the matching route. For an opened cut or tear, use the kit’s backed-opening method and thin compound layers. For localized stable peeling, remove only fully detached fragments and use the repair method. For broad stable coating loss, prepare and recolor the larger continuous area with the Balm method so isolated patches do not keep appearing. Get help when: Use specialist upholstery repair for airbag seams, restraint or electrical components, failed load-bearing seams, damaged frames or mechanisms, major contaminated foam loss, or leather or vinyl that keeps splitting or crumbling beyond the repair area.

Q: Why did the repair color change as it dried?

Likely cause: Wet compound can look different from dry compound. Test thickness, undertone, lighting and surface sheen can also make the same mix appear lighter, darker or flatter. What to do: Keep the remaining mix. Apply a thin test in a discreet area, let it dry fully and compare it in the item’s normal light. Adjust one color in a tiny amount, mix thoroughly and repeat the dry test. If the hue matches but the result looks flat, correct the material detail—grain, pile direction or texture—using the matching guide instead of changing the color again.

Cracks in a vinyl car door panel can be repaired by filling the damaged finish, restoring its color and recreating the surrounding grain. The Coconix Leather & Vinyl Repair Kit builds clustered cracks, worn topcoat and shallow splits back to a level surface with several thin layers of color-matched compound.

Open the door through its full range and inspect the area around handles, switches, speakers, trim gaps and side-airbag markings. Remove only detached vinyl, clean residue from the crack network and mask nearby components. Use the surface method while the crack remains closed; if it has opened through the trim cover, switch to the kit’s backed cuts-and-tears method. Use automotive trim service if the panel is loose or warped, a mounting point is broken, the damage enters an airbag deployment path, or electrical components are exposed or damaged.

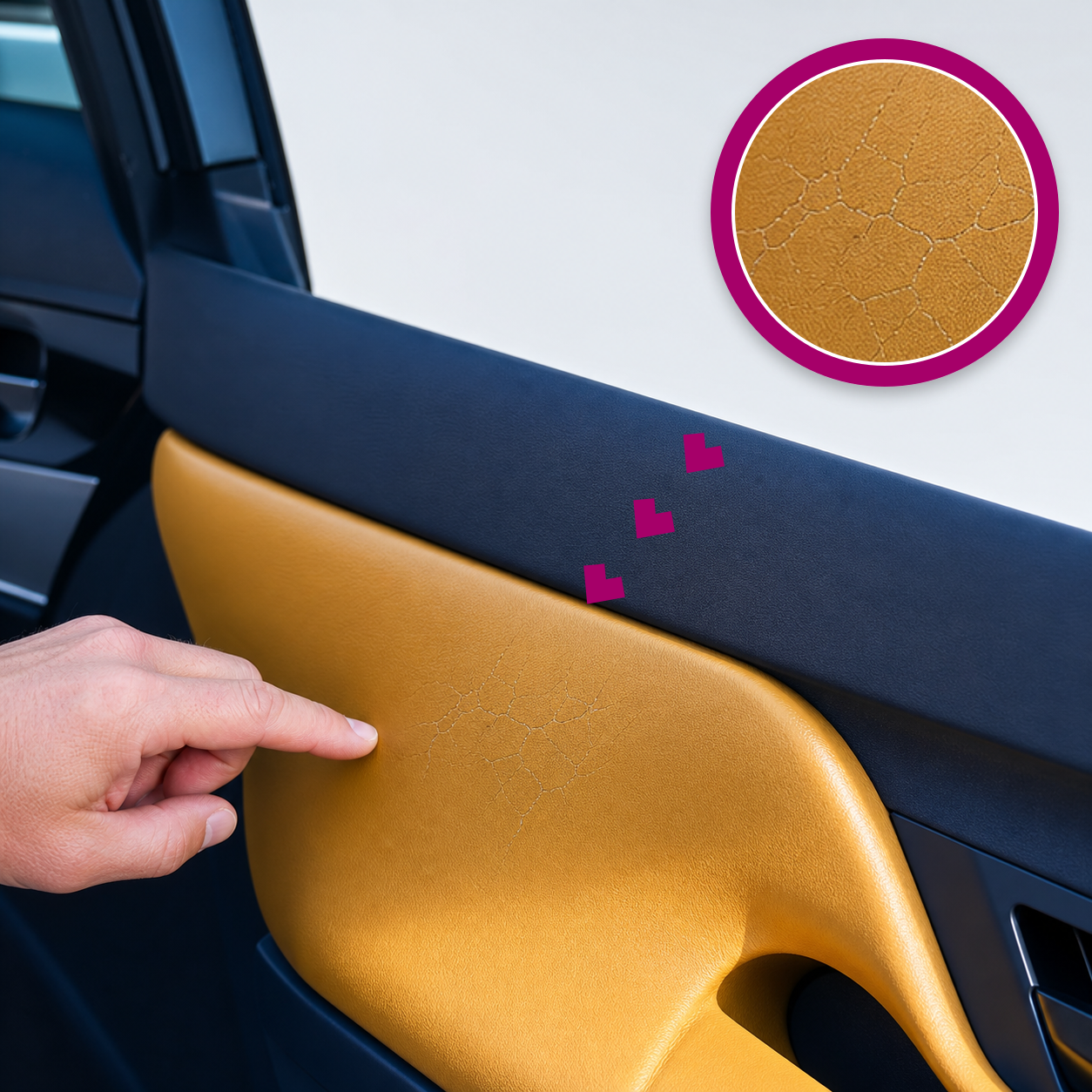

Fine cracks on a mustard vinyl car door panel, with a matching magenta magnified close-up and a hand pointing nearby.

Explore the learning hub More Leather & Vinyl repair guides

Repair at a glance: cracks on a vinyl car door panel

Material: Automotive vinyl trim
Damage: cracks
Item: vinyl car door panel

Repair cost

How much does it cost to repair cracks on a vinyl car door panel?

Professional repair estimates by currency

USD

United States dollar

Smaller repair$75–$200
More extensive repair$300–$700

EUR

Euro

Smaller repair€65–€170
More extensive repair€260–€600

GBP

British pound

Smaller repair£60–£150
More extensive repair£250–£600

What does professional repair cost?

Professional repair of a cracked vinyl car door panel depends on the size and complexity of the damage. For smaller cracks, technicians might charge between $75–$200 in the USA or £60–£150 in the UK, using specialized adhesives and fillers to restore the panel's appearance. Larger or deeper cracks that require significant effort, including refinishing the surface, could cost between $300–$700 in the USA or £250–£600 in the UK. The vehicle's make and model, as well as the availability of matching materials, can affect the overall price.

What does a DIY repair cost?

$19.95

The kit price shown here is live. One kit can often cover more than one small repair.

See the repair kit

What changes the repair cost?

The size, depth and severity of the damage
The material and whether reinforcement is needed
The color, grain, texture and finish-matching work
Local labor rates and whether the item must be transported

Professional prices are indicative ranges from the approved article content and can vary by repairer, location and condition. Request a local quote for an exact comparison.

Difficulty

How difficult is it to repair cracks on a vinyl car door panel?

Intermediate. The compound application is manageable, but accurate grain matching and careful masking around switches, trim gaps and safety components are essential.

Time required

How long does it take to repair cracks on a vinyl car door panel?

Allow 1.5–2.5 hours for preparation and application, followed by 6–7 hours of curing before the door panel is returned to normal use.

When cracks on a vinyl car door panel can be repaired at home

Use this method for clustered cracks, worn topcoat and shallow splits in a vinyl car door panel that can be filled, recolored and texture blended.

When to call a professional for cracks on a vinyl car door panel

If a crack has opened through the trim cover, use the kit’s backed cuts-and-tears method. Use automotive trim service for a loose or warped panel, broken mounting point, airbag-path damage, or exposed or damaged electrical components.

Prepare before you start

Materials needed to repair cracks on a vinyl car door panel

Coconix Leather & Vinyl Repair Kits
Rubbing Alcohol (70% or more)
Cotton Swab or Cotton Pad
Plastic Wrap (for texture)
Scissors (if necessary)

Before repairing cracks on a vinyl car door panel

Open the door through its full range, identify airbags and controls, clean and dry the vinyl, mask trim gaps, switches and speakers, remove only detached fragments, and test the cleaner and color in a hidden area.

Watch how to repair cracks on a vinyl car door panel

The written procedure below covers the repair steps shown in the video.

Detailed procedure

How to repair cracks on a vinyl car door panel: step by step

1

Step 1

Preparing the Area
- Use a pair of sharp scissors to carefully trim away any excess material, ensuring you remove frayed threads, rough edges, or protrusions without damaging the surrounding area.
- Take your time to create a smooth and clean edge around the cracks, as this will help the repair compound or filler adhere properly and result in a more seamless finish.
2

Step 2

Cleaning the Area
- Clean the area surrounding the cracks on your vinyl car door panel using rubbing alcohol applied with a cotton swab.
- Always test the rubbing alcohol on a small, hidden area first to ensure it won’t damage or discolor the material.
- If rubbing alcohol appears too harsh for your vinyl car door panel, opt for a gentler alternative like warm, soapy water or your regular leather or vinyl cleaner. Ensure the cleaning agent is suitable for the material and won’t leave any residue.
3

Step 3

Mixing the Repair Compound
- If your repair requires a custom color, consult the Color Mixing Guide included in the kit to achieve a perfect match for your vinyl car door panel.
- Use the provided empty mixing jar to combine the colors. Begin with the main base color and gradually add small amounts of the secondary color, mixing thoroughly after each addition to fine-tune the shade.
- Take your time to match the color accurately, testing a small amount on an inconspicuous area of your vinyl car door panel, to confirm it blends seamlessly.
4

Step 4

Applying the Repair Compound
- Apply the repair compound directly to the cracks on your vinyl car door panel, ensuring full coverage of the damaged area.
- Use the spatula for larger or deeper applications, spreading the compound evenly to create a smooth surface.
- For smaller areas or intricate details, use the brush to precisely apply the compound and touch up any fine spots, ensuring the repair blends seamlessly with the surrounding material.
5

Step 5

Drying and Additional Layers
- Let the repair compound on your vinyl car door panel dry thoroughly for several hours, ensuring it is no longer sticky to the touch before proceeding.
- Once the first layer is fully dry, evaluate the repaired area to determine if additional layers are needed to achieve a seamless blend with the surrounding surface.
- Apply subsequent layers as required, allowing each layer to dry completely before adding the next for the best results and a durable finish.
6

Step 6

Adding Texture
- When the repair compound on your vinyl car door panel is semi-dry, tear off a piece of plastic wrap large enough to cover the repaired area.
- Gently press the plastic wrap against the semi-dry top layer of the repair compound to create a subtle texture that mimics the surrounding surface.
- Repeat this process as needed, adjusting the pressure and placement, until the desired texture is achieved, ensuring the repaired area blends seamlessly with the original surface.
7

Step 7

Finishing Touches
- Once the repair compound on your vinyl car door panel has dried completely, moisten a cotton pad or swab with rubbing alcohol.
- Gently rub the edges of the repaired area to smooth and blend them with the surrounding surface, creating a seamless transition.
- After the edges are smooth, apply a leather conditioner to the entire surface of your vinyl car door panel. This will nourish the material, restore its natural shine, and help protect it from future wear.

Open the official detailed instruction manualProduct-specific Coconix application guidance

Protect the result

How to care for a vinyl car door panel after repairing cracks

Keep the restored surface out of use until every layer is fully dry and no longer tacky.
Clean gently with a compatible leather or vinyl product; avoid harsh solvents, abrasive pads and prolonged moisture.
Limit repeated friction, sharp objects, strong heat and direct sun where practical.
Inspect high-contact areas periodically. Do not use slippery conditioners or dressings on steering wheels, shift knobs or other vehicle controls.

Aftercare

Let every thin layer dry fully and keep the repaired door panel out of use until the final surface is dry and no longer tacky. Avoid abrasion, moisture and harsh cleaners during the initial cure.

Troubleshooting

Why does a leather or vinyl repair look too light, dark or flat?

Likely cause

The mix was judged while wet, the undertone differs, the compound layer is too thick, the lighting changed, or the surrounding grain was not recreated.

What to do

Compare a thin, fully dry test beside undamaged leather or vinyl in normal-use light. Adjust one color at a time, mix thoroughly and dry-test again. Apply only thin layers and let each dry fully; recreate the surrounding texture while the final layer is semi-dry, then blend the fully dried edge as shown in the matching Coconix method.

Why is the edge or texture of a leather or vinyl repair still visible?

Likely cause

Compound was applied too thickly, the opening or groove was not leveled in thin layers, the blend ended abruptly, or texture was not recreated while the final layer was semi-dry.

What to do

Use the damage-specific Coconix method on the smallest affected area. Build a low spot with thin layers, letting each layer dry fully. Avoid adding more material to a ridge; compare the cured edge with the official blending step before reworking it. For a smooth patch, recreate the surrounding texture while the final corrective layer is semi-dry, then blend only the fully dried boundary.

What should I do if leather or vinyl damage reopens or peeling continues?

Likely cause

The opening lacked support, the compound was built too thickly or used before fully dry, repeated flexing or abrasion is stressing the spot, or the surrounding coating is failing beyond a localized repair.

What to do

Clean and dry the complete area, inspect it while the item moves normally and choose the matching route. For an opened cut or tear, use the kit’s backed-opening method and thin compound layers. For localized stable peeling, remove only fully detached fragments and use the repair method. For broad stable coating loss, prepare and recolor the larger continuous area with the Balm method so isolated patches do not keep appearing.

Get help when

Use specialist upholstery repair for airbag seams, restraint or electrical components, failed load-bearing seams, damaged frames or mechanisms, major contaminated foam loss, or leather or vinyl that keeps splitting or crumbling beyond the repair area.

Why did the repair color change as it dried?

Likely cause

Wet compound can look different from dry compound. Test thickness, undertone, lighting and surface sheen can also make the same mix appear lighter, darker or flatter.

What to do

Keep the remaining mix. Apply a thin test in a discreet area, let it dry fully and compare it in the item’s normal light. Adjust one color in a tiny amount, mix thoroughly and repeat the dry test. If the hue matches but the result looks flat, correct the material detail—grain, pile direction or texture—using the matching guide instead of changing the color again.

Frequently asked questions

What leather and vinyl damage can the Coconix Leather & Vinyl Repair Kit repair?

The kit is designed for compatible localized scratches, cracks, cuts, tears, burns, holes, worn finish and a few stable peeling areas. Open damage can use the supplied backing fabric, and the visible repair is rebuilt and color-matched in controlled layers. For broad stable peeling or color loss across whole panels, Recoloring Balm is usually the better route.

Can Coconix repair colors be mixed?

The mix-and-match repair systems are designed so compatible kit colors can be blended toward the surrounding material. Work gradually and confirm the dry result with a discreet test.

Should I judge a repair color while it is wet or dry?

Judge the fully dried test in the lighting where the item is normally used. Wet mixtures and different light sources can make the same color appear misleading.

How long will the repair last?

When applied correctly, our repair solutions are designed to provide long-lasting results. For optimal durability, take your time and ensure each step is completed carefully. Rushing through the process can impact the final outcome, so following the instructions at your own pace will help you achieve the best possible results.

Customer repair story

Great for Restoring Older Cars

I have an older vehicle that’s starting to show its age, and one of the biggest eyesores was a crack in the vinyl door panel. I used the Coconix kit, and the difference is incredible. It doesn’t look brand-new, but the crack is sealed, and the texture is much smoother. For an older car, this kit gave it a much-needed refresh without breaking the bank.

Individual repair results vary with the damage, material, preparation and application.
